China Manufacturer for 18 mm ROCPLEX Shuttering Plywood Wall Slab Formwork 25 Times Reuse for Concrete Building Material

Short Description:

China Manufacturer for 18 mm ROCPLEX Shuttering Plywood Wall Slab Formwork 25 Times Reuse for Concrete Building Material, ROCPLEX 18mm Black Film Faced Plywood For Construction Use Plywood Board is a high-quality hardwood plywood covered with phenolic resin-treated film that turns into a protective film during production.

Send email to us

Product Detail

Product Tags

SHUTTERING PLYWOOD

https://www.rocplex.com/film-faced-plywood/

We've got a specialist, effectiveness staff to supply high quality service for our shopper. We always follow the tenet of customer-oriented, details-focused for China Manufacturer for 18 mm ROCPLEX Shuttering Plywood Wall Slab Formwork 25 Times Reuse for Concrete Building Material, We maintain timely delivery schedules, innovative designs, quality and transparency for our customers. Our moto is to deliver quality products within stipulated time.
We've got a specialist, effectiveness staff to supply high quality service for our shopper. We always follow the tenet of customer-oriented, details-focused for 18 Plywood, Shuttering Plywood, Slab Formwork, Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact me. We are looking forward to forming successful business relationship with new clients around the world.

Sr NO.	Property		Unit	Test Method	Value Of Test	Result
1	Moisture Content		%	EN 322	7.5	Check out
2	Density		kg/m3	EN 323	690	Check out
3	Bonding Qality	Bonding Qality	Mpa	EN 314	Max: 1.68 Min: 0.81	Check out
3	Bonding Qality	Damage Rate	%	EN 314	85%	Check out
4	Bending Moudulus of Elasticity	Longitudinal	Mpa	EN 310	6997	Check out
4	Bending Moudulus of Elasticity	Lateral	Mpa		6090	Check out
5	Longitudinal	Mpa	Mpa		59	Check out
5	Lateral	Mpa	Mpa		43.77	Check out
6	Cycle Life	About 15-25 Repeated Using Times Acoording To Projects By Formwork Application

Sr NO.	Property		Unit	Test Method	Value Of Test	Result
1	Moisture Content		%	EN 322	8	Check out
2	Density		kg/m3	EN 323	605	Check out
3	Bonding Qality	Bonding Qality	Mpa	EN 314	Max: 1.59 Min: 0.79	Check out
3	Bonding Qality	Damage Rate	%	EN 314	82%	Check out
4	Bending Moudulus of Elasticity	Longitudinal	Mpa	EN 310	6030	Check out
4	Bending Moudulus of Elasticity	Lateral	Mpa		5450	Check out
5	Longitudinal	Mpa	Mpa		57.33	Check out
5	Lateral	Mpa	Mpa		44.79	Check out
6	Cycle Life	About 12-20 Repeated Using Times Acoording To Projects By Formwork Application

Sr NO.	Property		Unit	Test Method	Value Of Test	Result
1	Moisture Content		%	EN 322	8.4	Check out
2	Density		kg/m3	EN 323	550	Check out
3	Bonding Qality	Bonding Qality	Mpa	EN 314	Max: 1.40 Min: 0.70	Check out
3	Bonding Qality	Damage Rate	%	EN 314	74%	Check out
4	Bending Moudulus of Elasticity	Longitudinal	Mpa	EN 310	5215	Check out
4	Bending Moudulus of Elasticity	Lateral	Mpa		4796	Check out
5	Longitudinal	Mpa	Mpa		53.55	Check out
5	Lateral	Mpa	Mpa		43.68	Check out
6	Cycle Life	About 9-15 Repeated Using Times Acoording To Projects By Formwork Application

ROCPLEX 18mm Film faced plywood Save cost
	Be special for phenolic glue and film	The film faced plywood can be disassembled and used repeatedly for both faces,saving 25% of the cost.
	Optimization for the special grade of core
	Be special for adhesive
ROCPLEX Film faced plywood Shorten duration
	Excellent effect of demoulding	Shorten 30% of the duration.
	Avoid the reconstruction of the wall
	Be easy to incise and blend
ROCPLEX Film faced plywood the high quality of casting
	The flat and smooth faces	The faces are flat and smooth, avoiding bleeding out remains of bubbles and concrete.
	The structure of waterproof and breathability
	The edges are polished carefully

Container Type	Pallets	Volume	Gross Weight	Net Weight
20 GP	8 pallets	22 CBM	13000KGS	12500KGS
40 HQ	18 pallets	53 CBM	27500KGS	28000KGS

Meanwhile we also can supply you the formwork systerm accessories, commercial plywood , film faced plywood etc.
We specially professional in supplying antislip plywood.
Please contact our sales team for more detailed information regarding chinese film faced plywood.

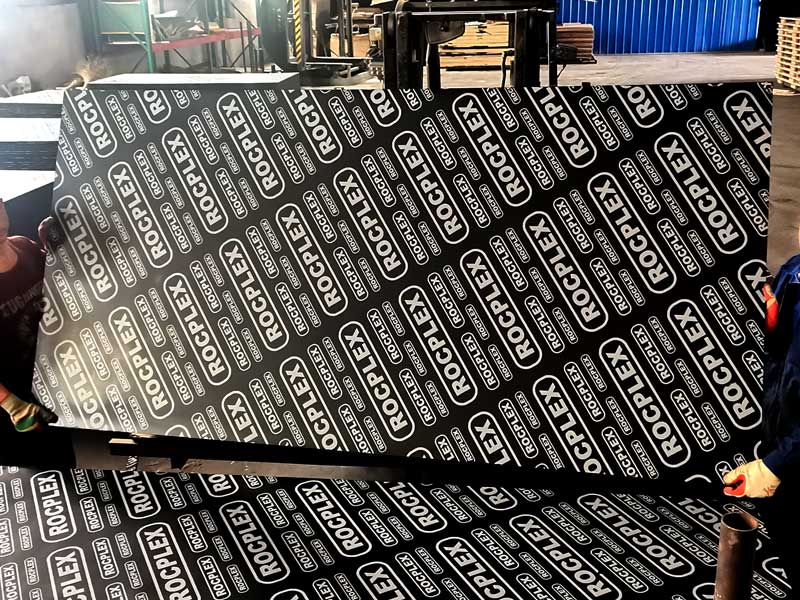

FILM-FACED-PLYWOOD (1)

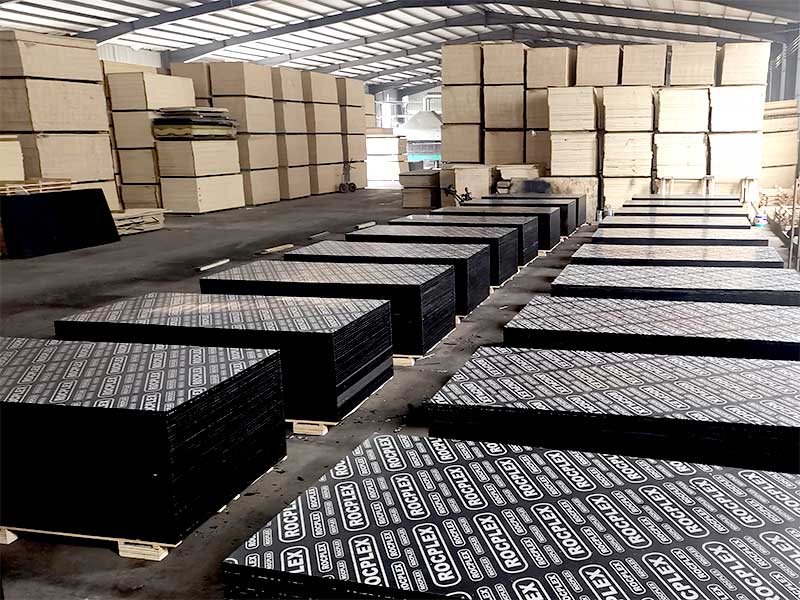

FILM-FACED-PLYWOOD (2)

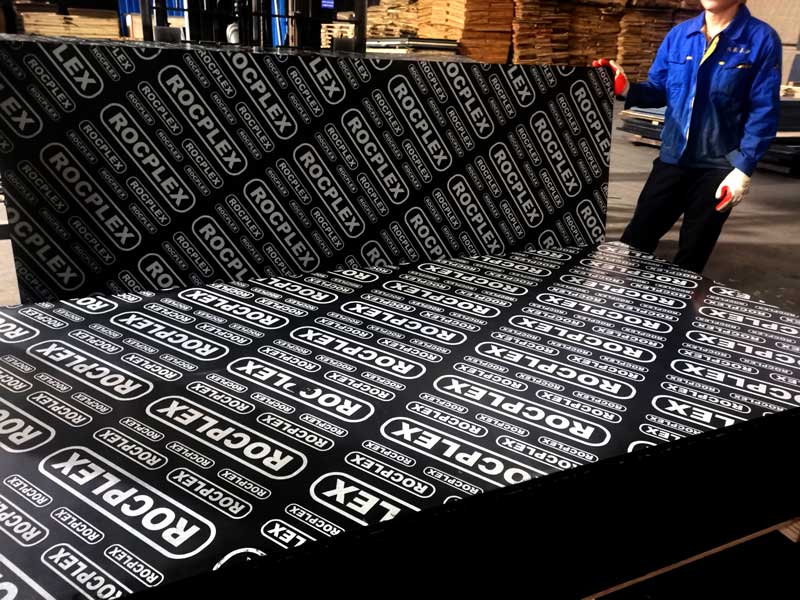

FILM-FACED-PLYWOOD (3) We've got a specialist, effectiveness staff to supply high quality service for our shopper. We always follow the tenet of customer-oriented, details-focused for China Manufacturer for 18 ROCPLEX Shuttering Plywood Wall Slab Formwork 25 Times Reuse for Concrete Building Material, We maintain timely delivery schedules, innovative designs, quality and transparency for our customers. Our moto is to deliver quality products within stipulated time.
China Manufacturer for Shuttering Plywood, Slab Formwork, 18 Plywood, Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact me. We are looking forward to forming successful business relationship with new clients around the world.
