Hexa Grip Plywood Supplier 18 Years Factory China 9mm/12mm/18mm/21mm/25mm/28mm Waterproof Hexa Film Faced Plywood Antislip Plywood for Trailer floor and Building Construction Usage
Our enterprise sticks to the basic principle of "Quality may be the life of the firm, and status could be the soul of it" for Hexa Grip Plywood Supplier 18 Years Factory China 9mm/12mm/18mm/21mm/25mm/28mm Waterproof Hexa Film Faced Plywood Antislip Plywood for Trailer floor and Building Construction Usage, The continual availability of substantial grade goods in combination with our exceptional pre- and after-sales support ensures strong competitiveness in an increasingly globalized marketplace.
Our enterprise sticks to the basic principle of "Quality may be the life of the firm, and status could be the soul of it" for Antislip Plywood, Hexa Grip Plywood, Hexa Grip Plywood Supplier, trailer floor, We always insist on the management tenet of "Quality is first, Technology is basis, Honesty and Innovation".We are able to develop new solutions continuously to a higher level to satisfy different needs of customers.
ROCPLEX Hexa Grip Plywood, Coated With Brown, Black, Red Or Gray Film, Designed For Use As Flooring In The Transportation Industry, The Heavy Duty Hex Pattern Face Gives Superlative Slip Resistance. Highly Resistant To Slip And High Durability.

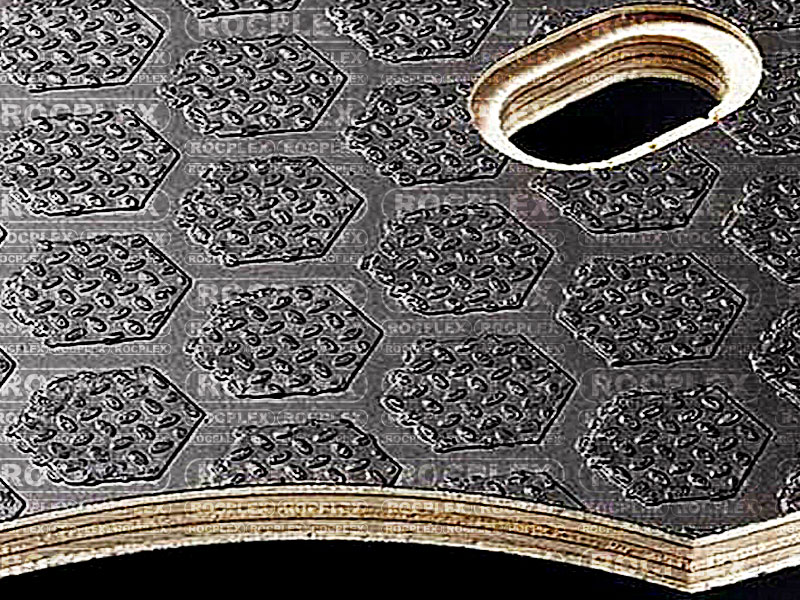

The Surface With Hexagon Mesh Pattern With A Diameter Of 10 Mm. This Imprinted Wire Mesh Hexagon Pattern Improves Plywood Surface Slip Resistance Characteristics.
As You Can See ROCPLEX Hexa Grip Plywood Is So Durable And Strong Plywood Type.
ROCPLEX Hexa Grip Plywood With 240gm Hexagon Mesh Faced And 120gm Smooth Film Back Face, Manufactured From Quality Birch Veneers Bonded Together With Super E0 Waterproof Adhesive, Which Has Superior Bond Strength.
A Phenolic Film Is Pressed On Both Flat And Smoonth Surfaces Of The Birch Plywood Under High Pressure And Temperature, Smooth On One Surface And A Textured Pattern Is Pressed Onto The Other.
Birch Veneer Core Is A Fine Textured, Strong, Dense Timber Which Is Excellent For Engineering Applications Where Precision, Stability, Flatness And Strength Are Primary Considerations.
The Edges 3 Times Sealed With Waterproof Paint In The Factory For Minimise Moisture Penetration..
ROCPLEX Hexa Grip Plywood Sheet Have Improved Resistance To Abrasion, Moisture Penetration, Chemicals, Insects And Fungi.
Certified To En636-2s Standard
Sr NO. |
Property |
Unit |
Test Method |
Value Of Test |
Result |
|
1 |
Moisture Content |
% |
EN 322 |
7.5 |
Check out |
|
2 |
Density |
kg/m3 |
EN 323 |
690 |
Check out |
|
3 |
Bonding Qality |
Bonding Qality |
Mpa |
EN 314 |
Max: 1.68 Min: 0.81 |
Check out |
Damage Rate |
% |
85% |
Check out |
|||
4 |
Bending Moudulus of Elasticity |
Longitudinal |
Mpa |
EN 310 |
6997 |
Check out |
Lateral |
6090 |
Check out |
||||
5 |
Longitudinal |
Mpa |
Mpa |
59 |
Check out |
|
Lateral |
43.77 |
Check out |
||||
6 |
Cycle Life |
About 15-25 Repeated Using Times Acoording To Projects By Formwork Application |
■Decorative, yet functional slip-resistant birch plywood suitable for a wide range of demanding applications.
■Easily worked / CNC machined, good chemical and weather resistance, plus easy to clean.
■Superior strength and stability.
■Suitable for structural use.
■Wide range of thicknesses, colors, and sizes to order.
■Hexagon mesh pattern face gives superlative slip resistance
■ 10 years experience produce antislip plywood for trailer floor
■ Slip resistant surface, rating R12
■ Very durable wear resistant surface
■ Heat and cold resistant -30°C / +80°C
■ Premium grade waterproof face and back.
■ High load bearing capacity.
■ Sheet thicknesses: 3 to 40mm
■ Good colour stability
■ Available in kind colour surface appearance to choose.
■ Manufactured from sustainably-grown plantation hardwood.
■ Premium grade BC interior plywood panel.
■ Environmentally friendly product (contains no chlorine derivatives)
■ FSC certified upon request.
Container Type |
Pallets |
Volume |
Gross Weight |
Net Weight |
20 GP |
8 pallets |
22 CBM |
13000KGS |
12500KGS |
40 HQ |
18 pallets |
53 CBM |
27500KGS |
28000KGS |
Automotive Field Use
Trailer Floor, Train Floor, Airplane Floor, Vehicle Floor, Van Linings, Horse Boxes, Industrial Trolleys Bases
Case Manufacturing Use
Flight Case, Hard Case, Soft Case, Flight Chests, Speaker
Decorative Use
Interior Design, Furniture, Shop Fitting And Joinery
Stage And Scaffold System Use
Damper Flooring, Scaffolding Platforms, Stage Systems, Stands, Terraces, Sports, And Playgrounds.
Podium Stage Floors, Cold Room, Cold Storage, Cold Weather Panels (cooling Systems) Floors Are Used As Anti-slip Material.
Due to material availability and mill capability, ROCPLEX may be offered in slightly different specifications in particular regions. Please check with your local representative to confirm the product offering in your area.
Meanwhile we also can supply you the formwork systerm accessories, commercial plywood , film faced plywood etc.
We specially professional in supplying antislip plywood.
Please contact our sales team for more detailed information regarding chinese Antislip film faced plywood.
Our enterprise sticks to the basic principle of "Quality may be the life of the firm, and status could be the soul of it" for Hexa Grip Plywood Supplier 18 Years Factory China 9mm/12mm/18mm/21mm/25mm/28mm Waterproof Hexa Film Faced Plywood Antislip Plywood for Trailer floor and Building Construction Usage, The continual availability of substantial grade goods in combination with our exceptional pre- and after-sales support ensures strong competitiveness in an increasingly globalized marketplace.
18 Years Factory China Hexa Grip Plywood Supplier, Hexa Grip Plywood, Antislip Plywood, Trailer floor, We always insist on the management tenet of "Quality is first, Technology is basis, Honesty and Innovation".We are able to develop new solutions continuously to a higher level to satisfy different needs of customers.
