OEM China Construction Plywood Film Faced Concrete Formwork Plywood

Short Description:

ROCPLEX 18mm Black Film Faced Plywood For Construction Use Plywood Board is a high-quality hardwood plywood covered with phenolic resin-treated film that turns into a protective film during production.

Send email to us

Product Detail

Product Tags

Film faced Plywood

We rely upon strategic thinking, constant modernisation in all segments, technological advances and of course upon our employees that directly participate within our success for OEM China Construction Plywood Film Faced Concrete Formwork Plywood, We're not contented with the present achievements but we have been trying ideal to innovate to meet buyer's much more personalized needs. No matter where you will be from, we're here to wait for your type ask for, and welcom to go to our manufacturing unit. Choose us, you can fulfill your dependable supplier.
We rely upon strategic thinking, constant modernisation in all segments, technological advances and of course upon our employees that directly participate within our success for Film Faced Plywood, Film Plywood, Formwork, To let customers be more confident in us and get the most comfortable service, we run our company with honesty, sincerity and best quality . We firmly believe that it is our pleasure to help customers to run their business more successfully, and that our professional advice and service can lead to more suitable choice for the customers.

Sr NO.	Property		Unit	Test Method	Value Of Test	Result
1	Moisture Content		%	EN 322	7.5	Check out
2	Density		kg/m3	EN 323	690	Check out
3	Bonding Qality	Bonding Qality	Mpa	EN 314	Max: 1.68 Min: 0.81	Check out
3	Bonding Qality	Damage Rate	%	EN 314	85%	Check out
4	Bending Moudulus of Elasticity	Longitudinal	Mpa	EN 310	6997	Check out
4	Bending Moudulus of Elasticity	Lateral	Mpa		6090	Check out
5	Longitudinal	Mpa	Mpa		59	Check out
5	Lateral	Mpa	Mpa		43.77	Check out
6	Cycle Life	About 15-25 Repeated Using Times Acoording To Projects By Formwork Application

Sr NO.	Property		Unit	Test Method	Value Of Test	Result
1	Moisture Content		%	EN 322	8	Check out
2	Density		kg/m3	EN 323	605	Check out
3	Bonding Qality	Bonding Qality	Mpa	EN 314	Max: 1.59 Min: 0.79	Check out
3	Bonding Qality	Damage Rate	%	EN 314	82%	Check out
4	Bending Moudulus of Elasticity	Longitudinal	Mpa	EN 310	6030	Check out
4	Bending Moudulus of Elasticity	Lateral	Mpa		5450	Check out
5	Longitudinal	Mpa	Mpa		57.33	Check out
5	Lateral	Mpa	Mpa		44.79	Check out
6	Cycle Life	About 12-20 Repeated Using Times Acoording To Projects By Formwork Application

Sr NO.	Property		Unit	Test Method	Value Of Test	Result
1	Moisture Content		%	EN 322	8.4	Check out
2	Density		kg/m3	EN 323	550	Check out
3	Bonding Qality	Bonding Qality	Mpa	EN 314	Max: 1.40 Min: 0.70	Check out
3	Bonding Qality	Damage Rate	%	EN 314	74%	Check out
4	Bending Moudulus of Elasticity	Longitudinal	Mpa	EN 310	5215	Check out
4	Bending Moudulus of Elasticity	Lateral	Mpa		4796	Check out
5	Longitudinal	Mpa	Mpa		53.55	Check out
5	Lateral	Mpa	Mpa		43.68	Check out
6	Cycle Life	About 9-15 Repeated Using Times Acoording To Projects By Formwork Application

ROCPLEX 18mm Film faced plywood Save cost
	Be special for phenolic glue and film	The film faced plywood can be disassembled and used repeatedly for both faces,saving 25% of the cost.
	Optimization for the special grade of core
	Be special for adhesive
ROCPLEX Film faced plywood Shorten duration
	Excellent effect of demoulding	Shorten 30% of the duration.
	Avoid the reconstruction of the wall
	Be easy to incise and blend
ROCPLEX Film faced plywood the high quality of casting
	The flat and smooth faces	The faces are flat and smooth, avoiding bleeding out remains of bubbles and concrete.
	The structure of waterproof and breathability
	The edges are polished carefully

Container Type	Pallets	Volume	Gross Weight	Net Weight
20 GP	8 pallets	22 CBM	13000KGS	12500KGS
40 HQ	18 pallets	53 CBM	27500KGS	28000KGS

Meanwhile we also can supply you the formwork systerm accessories, commercial plywood , film faced plywood etc.
We specially professional in supplying antislip plywood.
Please contact our sales team for more detailed information regarding chinese film faced plywood.

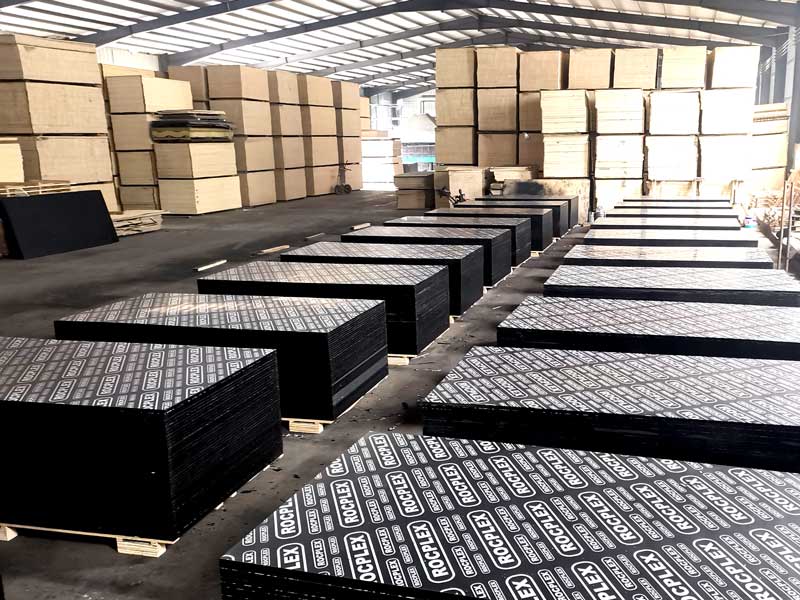

FILM-FACED-PLYWOOD (1)

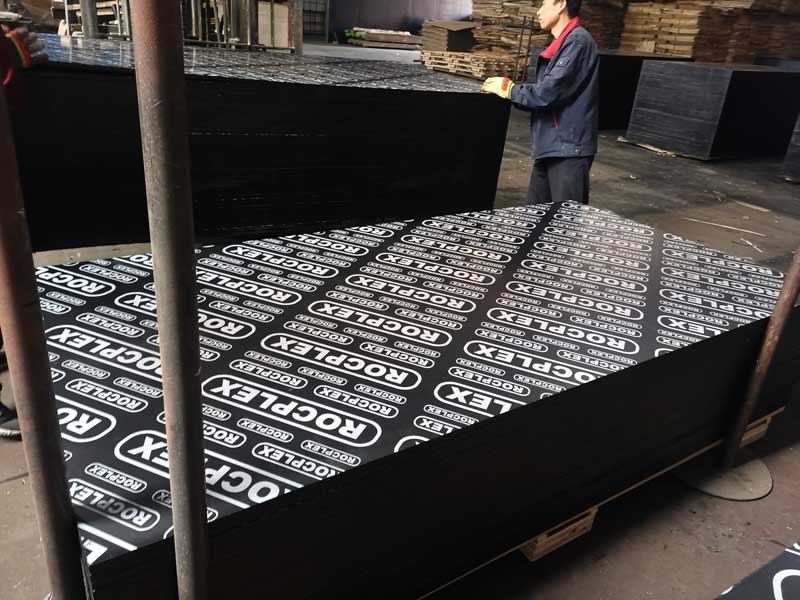

FILM-FACED-PLYWOOD (2)
FILM-FACED-PLYWOOD (3) We rely upon strategic thinking, constant modernisation in all segments, technological advances and of course upon our employees that directly participate within our success for OEM China Construction Plywood Film Faced Concrete Formwork Plywood, We're not contented with the present achievements but we have been trying ideal to innovate to meet buyer's much more personalized needs. No matter where you will be from, we're here to wait for your type ask for, and welcom to go to our manufacturing unit. Choose us, you can fulfill your dependable supplier.
OEM China Film Faced Plywood, Film Plywood, Formwork, Film Faced Plywood Concrete Formwork, To let customers be more confident in us and get the most comfortable service, we run our company with honesty, sincerity and best quality . We firmly believe that it is our pleasure to help customers to run their business more successfully, and that our professional advice and service can lead to more suitable choice for the customers.
